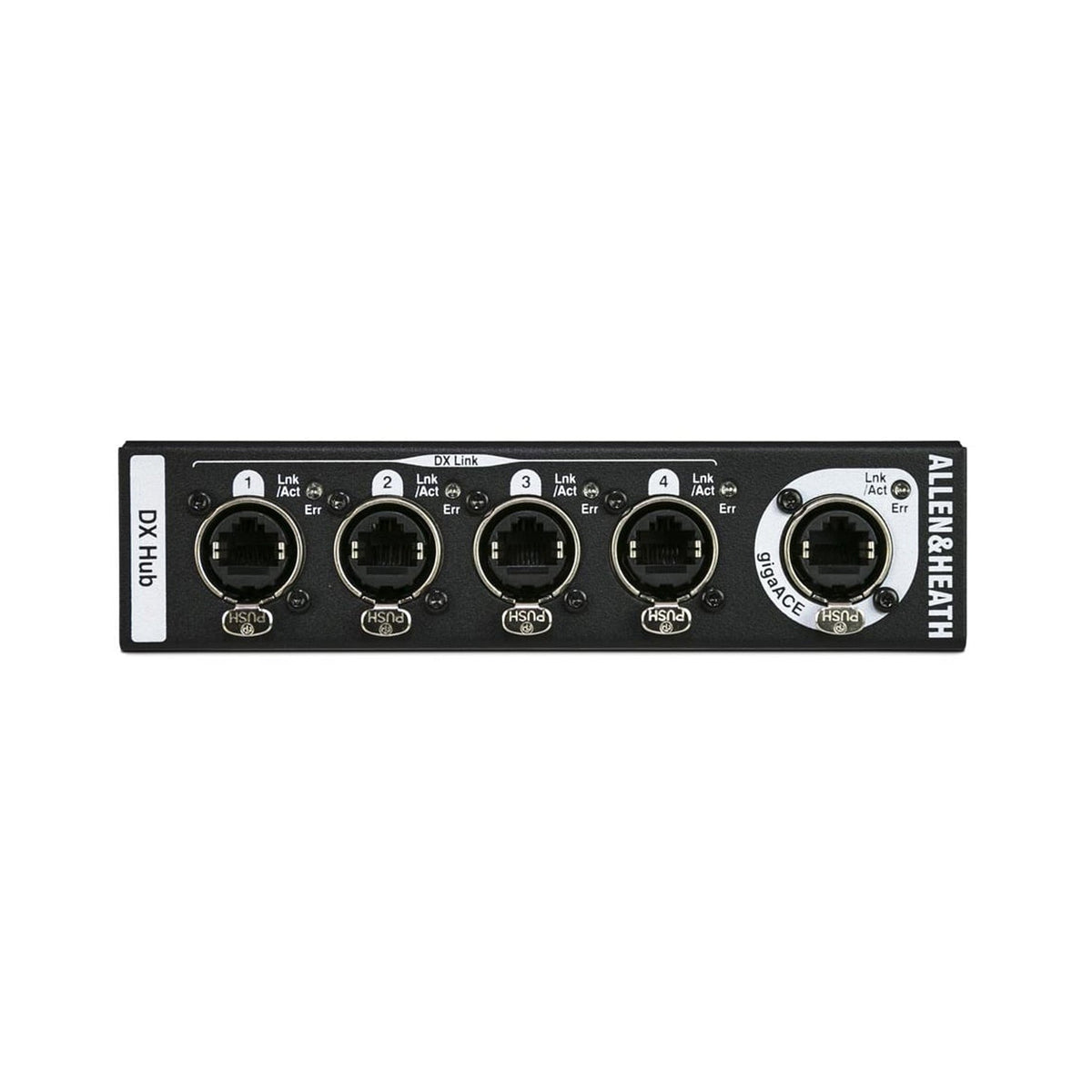

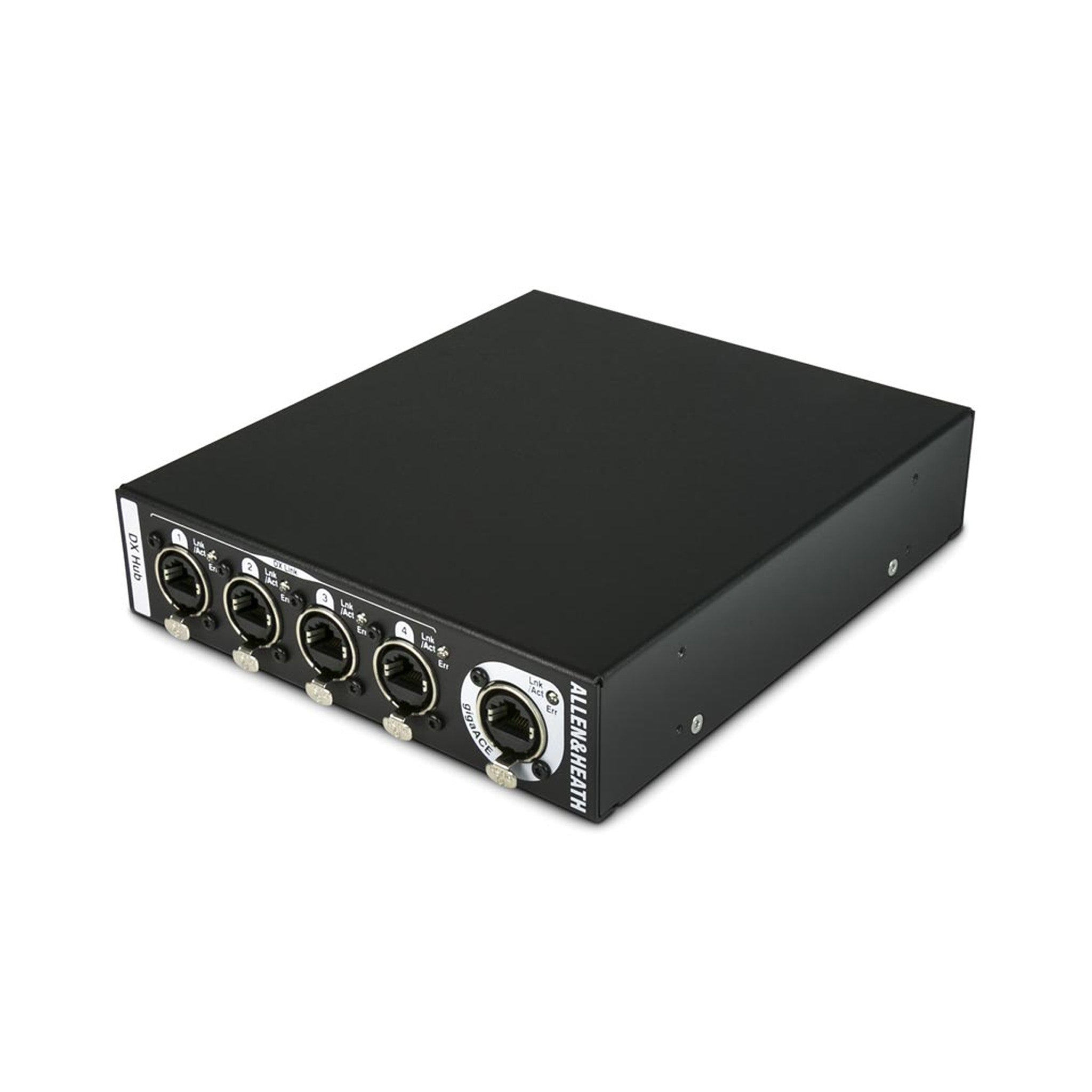

Allen and Heath DX expander hub

• Durable and portable expander hub • Support up to 2 DX168/DX164-W/DX012 or 1 DX32 • Provides 4 DX Link ports • Each port carries 32×32 channels of 96kHz audio • 2 DX expanders can be connected for 128 inputs and 64 outputs, Introducing the Allen and Heath DX expander hub The DX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect up to 8 DX expander units. Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system. Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only). A pair of DX Hubs can be used for dual-cable connection to compatible dLive hardware, and a single CAT5 run from the DX Hub to your mixer reduces cabling requirements. DX Hub can be connected to any AHM, SQ or Avantis mixer via SLink, or any Avantis mixer or dLive system fitted with a gigaACE I/O module. Simplify cable runs DX Hub is particularly suited to Install and Commercial Audio applications and any environment where it is desirable to run a single “trunk” CAT5e cable to the DX Hub from the AHM, dLive, Avantis or SQ system.
