Kitronik Steady Hand Project Kit (with Latch)- single

This steady hand game has a buzzer that sounds momentarily when the loop makes contact with the wire.

It also has an LED, which latches on when the buzzer sounds via the use of a thyristor. It then remains on so that even the briefest contact of the loop with the wire can be indicated. A push button is used to reset the LED.

Features:

• Buzzer sounds when loop makes contact with wire.
• LED latched until reset button is pressed.
• Bright LED to notify user.
• Loud buzzer sound.

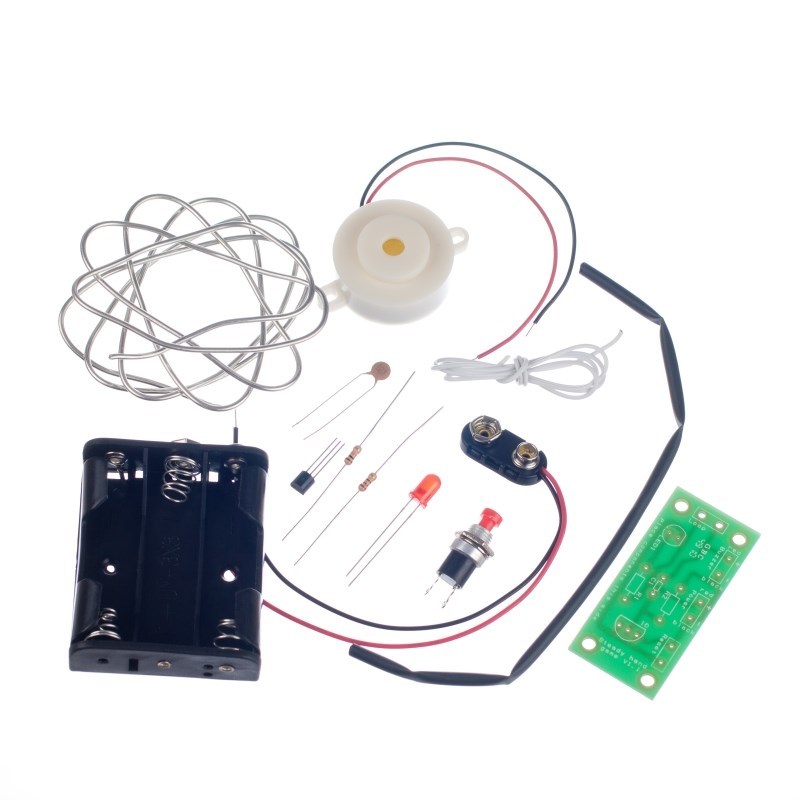

Contents (per kit):

• 1 x PP3 Battery Clip Lead (Heavy Duty).
• 1 x 3xAA Battery Cage with Clip.
• 1 x 1m Extra Flexible Wire, Black.
• 1 x 1m Solid Core Cable.
• 1 x Piezo Buzzer (with Drive).
• 1 x 220R Resistor.
• 1 x 10K Resistor.
• 1 x Capacitor, Ceramic, 50V, 10nF.
• 1 x 2N5061 Thyristor.
• 1 x Red 5mm Diffused LED - 275mCd.
• 1 x Miniature Push to Make Switch, Red.
• 1 x 20cm length Black Heat Shrink, 2.4mm.
• 1 x Steady Hand PCB.

Contents (per pack of 24 kits):

• 24 x PP3 Battery Clip Lead (Heavy Duty).
• 24 x 3xAA Battery Cage with Clip.
• 1 x 25m Reel Extra Flexible Wire, Black.
• 1 x 25m Reel Solid Core Cable.
• 24 x Piezo Buzzer (with Drive).
• 24 x 220R Resistor.
• 24 x 10K Resistor.
• 24 x Capacitor, Ceramic, 50V, 10nF.
• 24 x 2N5061 Thyristor.
• 24 x Red 5mm Diffused LED - 275mCd.
• 24 x Miniature Push to Make Switch, Red.
• 3 x 1m length Black Heat Shrink, 2.4mm.
• 24 x Steady Hand PCB.

Dimensions:

• PCB Length: 52mm.
• PCB Width: 25mm.

Requires (per kit):

• 3 x AA Batteries.
• Pliers.
• Soldering Iron.
• Solder.
• Wire Cutters.
• Wire Strippers.

Requires (per pack of 24 kits):

• 72 x AA Batteries.
• Pliers.
• Soldering Iron.
• Solder.
• Wire Cutters.
• Wire Strippers.

Note:

For a pack of 24 the cables are supplied on reels with the remaining parts being individually bagged, for a pack of 1 the cables are supplied in the bag.

Resources:

• Click here to download the essential information
• Click here to download the full teaching resources

Note: this product is sometimes miss spelt as stedy hand game
