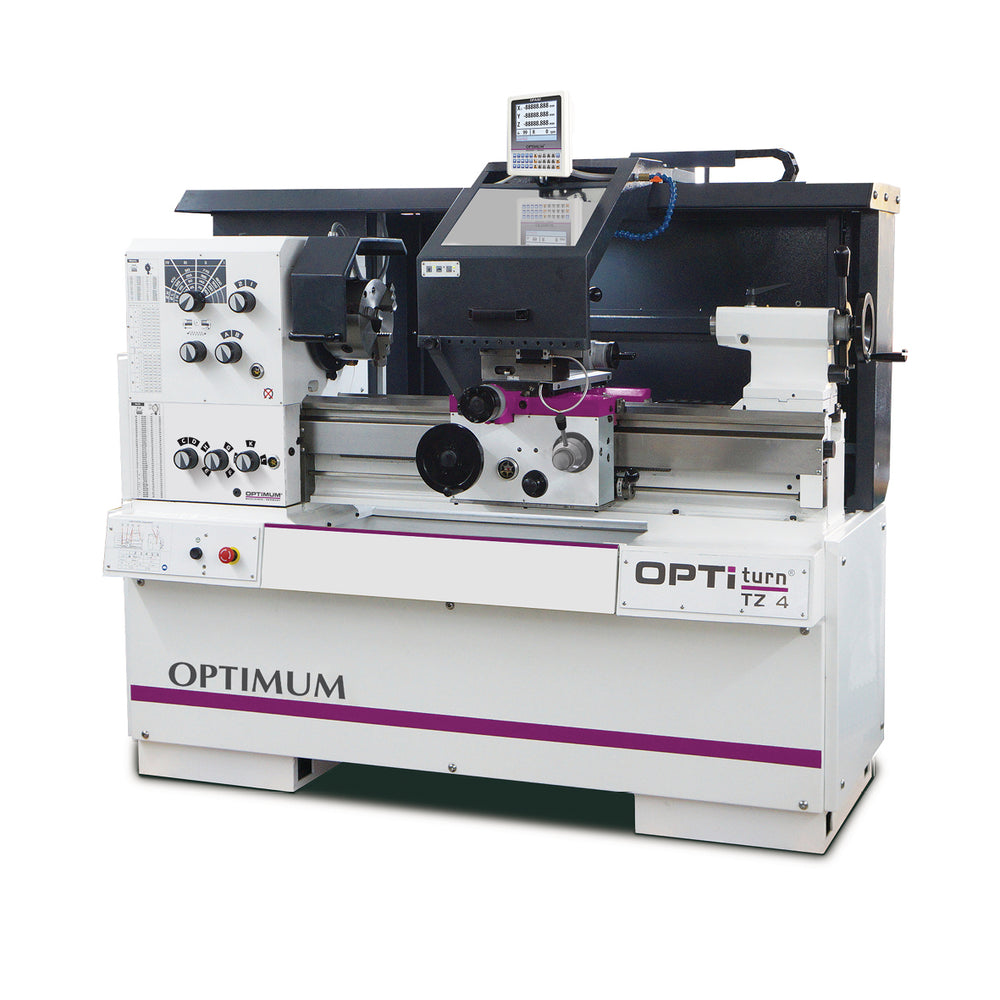

OPTIturn TZ 4 Lathe

Precision lathe with DRO having 800mm capacity between centres, 400mm swing over the machine bed, 16 gears and speeds 45 – 1800min¯¹.,Hardened, ground Z-axis guideway and spindle; adjustable split spindle nut; finely graduated feed and thread-cutting range for accurate machining and 3MT tailstock.,Two-channel safety electronics, EN ISO 13849 tested switches, EN 23125 compliant decoupled handwheels, and safety handwheels with X/Z disengagement function.,Partial enclosure with large chip guard, integrated position indicator, coolant hose, additional control panel, and protective lead/feed spindle covers.,Powerful motor 3 /4.5kW, 400V 3ph, switch cabinet with 24 V DC power supply, motor protection switch, and energy chain for cable and hose guidance.,Coolant device, pull-out chip tray, LED machine lamp, quick-change tool holder, 25×120 holder for 20 mm bits, and metric thread gears installed (doesn’t include chuck and tooling).
