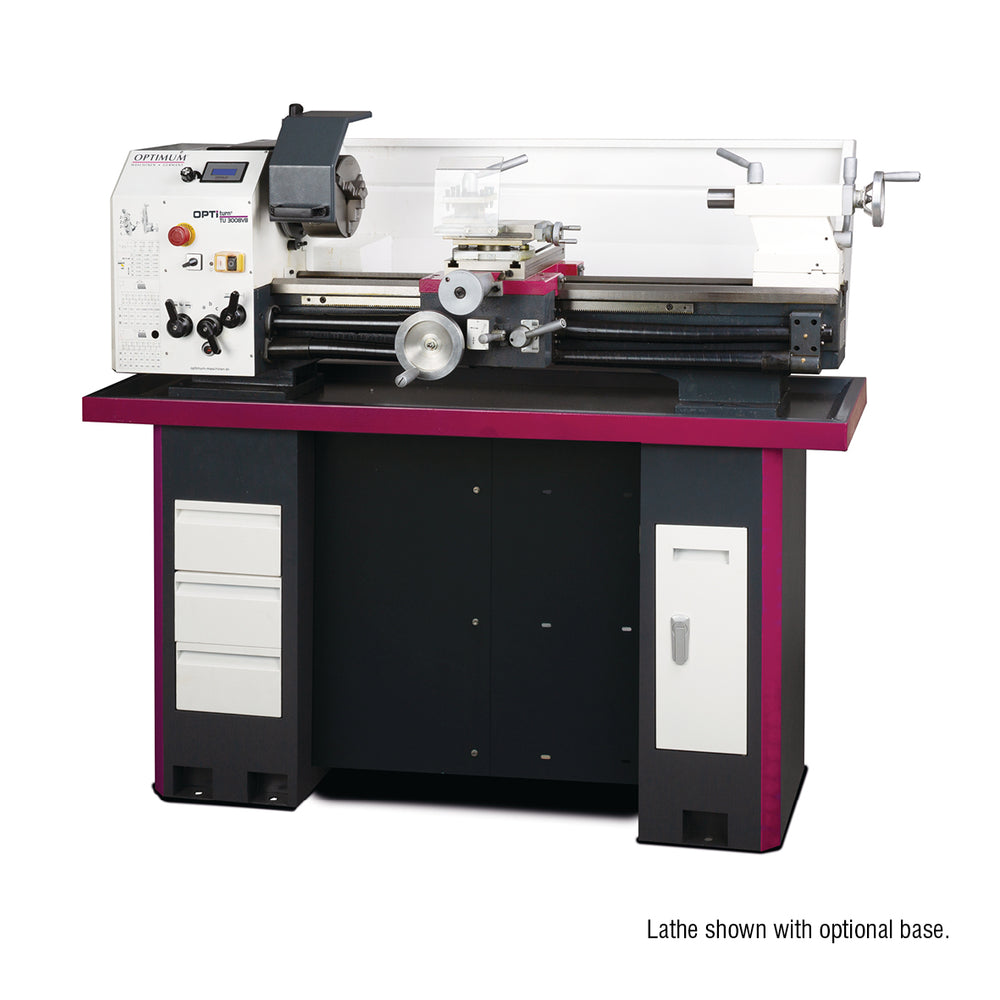

OPTIturn TU 3008VB Lathe

Floor standing lathe with 800mm capacity between centres, 310mm swing over the machine bed and electronically adjustable speed - 75 – 2500min¯¹.,Rigid construction with ribbed grey cast-iron prism bed, inductively hardened and precision-ground; adjustable guideways with wedge strips for stability and long-term machining accuracy.,High-precision hardened spindle with P5 tapered roller bearings, spindle bore Ø38 mm, spindle-nose concentricity <0.009 mm and chuck concentricity <0.04 mm.,Smooth feed system with oil-bath rounded-gear feed drive, automatic longitudinal/flat feeds, lead screw for threading or automatic turning, guide/feed shaft supported by sintered bearings - suitable for thread cutting.,4 station tool holder, adjustable 3MT tailstock for taper turning ±5 mm, quick clamping-lever adjustments, fine-scale handwheels (0.04/0.01 mm) and tailstock scale 0.02 mm.,Switchable right/left rotation, potentiometer speed control with digital display, emergency stop switch.
