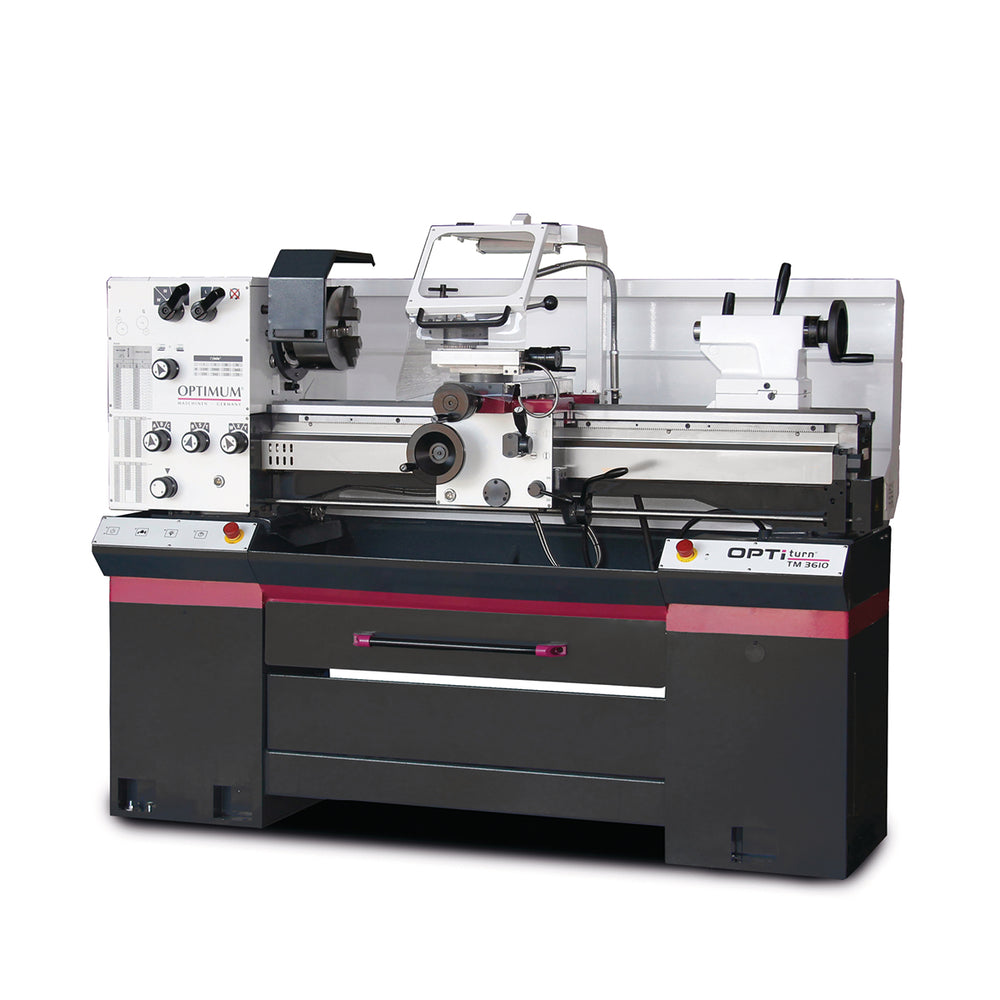

OPTIturn TM 3610 Lathe

Floor standing lathe with 1000mm capacity between centres, 360mm swing over the machine bed and electronically adjustable speed - 75 – 2400min¯¹.,Hardened Z-axis guideway and precision spindle (=0.015 mm concentricity) with Camlock DIN ISO 702-2 No.5 holder, tapered roller bearings for high load capacity and a 3MT tailstock.,Two-channel safety electronics, EN ISO 13849-tested switch, emergency stops both sides, lockable main switch, and mechanism preventing simultaneous tapping and feed operation.,Electrically braked main motor2.2kW, 400V 3ph, clockwise/anticlockwise rotation switchable on the bed slide, Optimum control switch cabinet, and simple feed operation with one change-gear position.,Hardened and ground steel feed gears with needle-bearing shafts, oil-bath lubrication for all components, and safety handwheels with disengagement on X and Z axis.,Machine equipment includes a sturdy steel base, LED machine lamp, removable coolant tank with level indicator and pump, plus a three-jaw lathe chuck.
