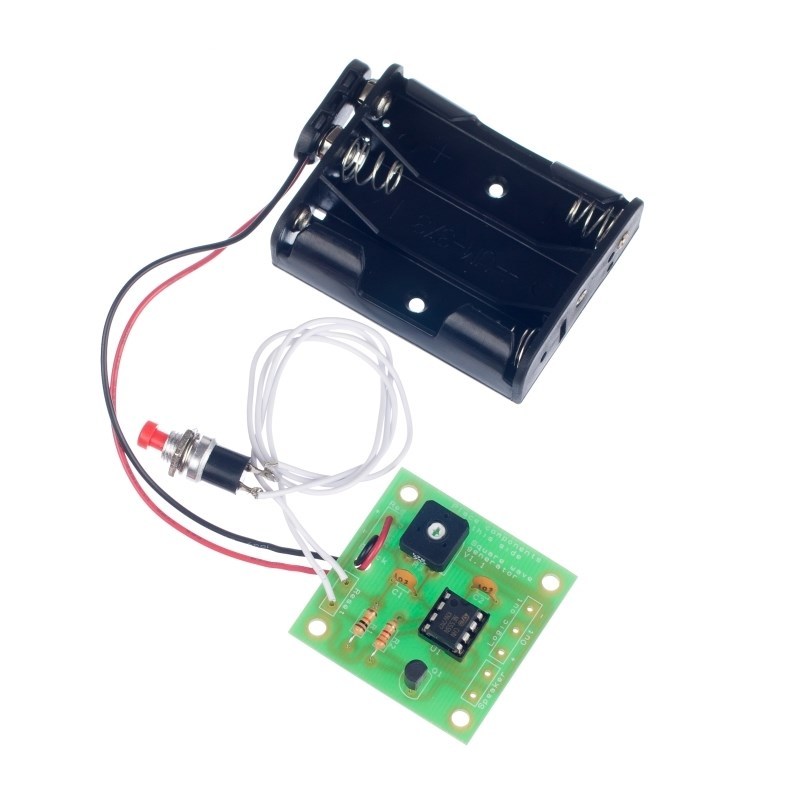

Kitronik 555 Timer Astable (Tone Generator) Kit

This kit is perfect for GCSE students needing to use a 555 timer in its astable mode, where it produces a square wave output. The frequency of which is adjustable via the variable resistor. The board has a choice of two outputs. The logic output can be used to drive another IC or a speaker can be connected so the tone is heard (e.g. a door bell).
The push button switch connects to the reset line such that the IC is only active when the button is pressed.
Features:
The 555 Timer Astable (Tone Generator) Kit produces a square wave output.
The frequency of the aquare wave is adjustable via the variable resistor.
