PreSonus NSB16.8 network stage box

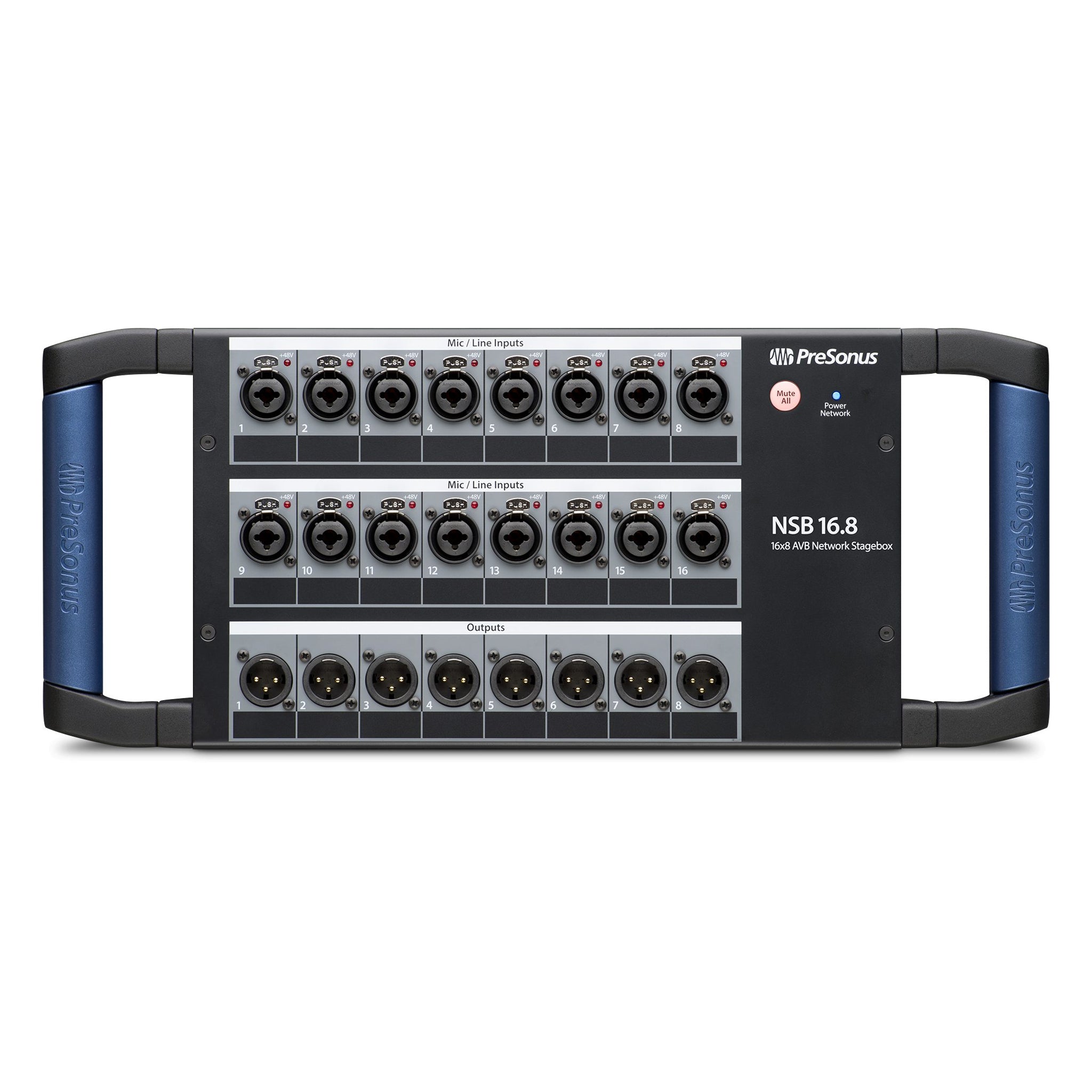

Introducing the PreSonus NSB16.8 network stage boxThe PreSonus ® NSB 16.8 networked stage box lets you put analog I/O for your StudioLive ® Series III digital mixer wherever you need it. Equipped with 16 digitally controlled XMAX mic preamps, 16 balanced line-level inputs, and 8 analog outputs, the NSB 16.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote-control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.The NSB 16.8 networked stage box is loaded with 16 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line level devices—the NSB 16.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.Rugged, durable exteriorPreSonus built the NSB 16.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit (NSB168.8-RACK), and your NSB 16.8 can be racked in your studio or backstage. For permanent installations, the NSB 16.8 is also compatible with stage pockets from Ace Backstage.A complete networked solutionStudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 16.8 can be used alone or with many other NSB-series stage boxes (NSB8.8) to add remote audio to one StudioLive Series III digital mixer or to multiple mixers on the same network. For StudioLive Series III mixers that have limited onboard analog I/O, the NSB 16.8 provides a simple expansion to a full 32- or 64-channel mixing system.16x8 network stage box for StudioLive ® Series III console mixers, 16 digitally controlled XMAX mic/line inputs & 8 line outputs, Easy configuration from StudioLive Series III console mixers and UC Surface, Built-in 2-port AVB switch with locking Ethernet connections, Easy configuration from StudioLive Series III console mixers and UC Surface, Optional rack ears
